GIGABYTE B650 GAMING X AX Motherboard

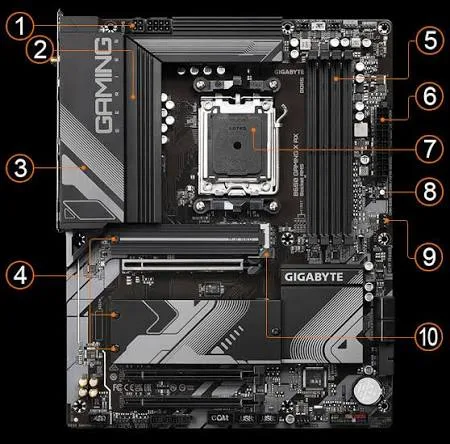

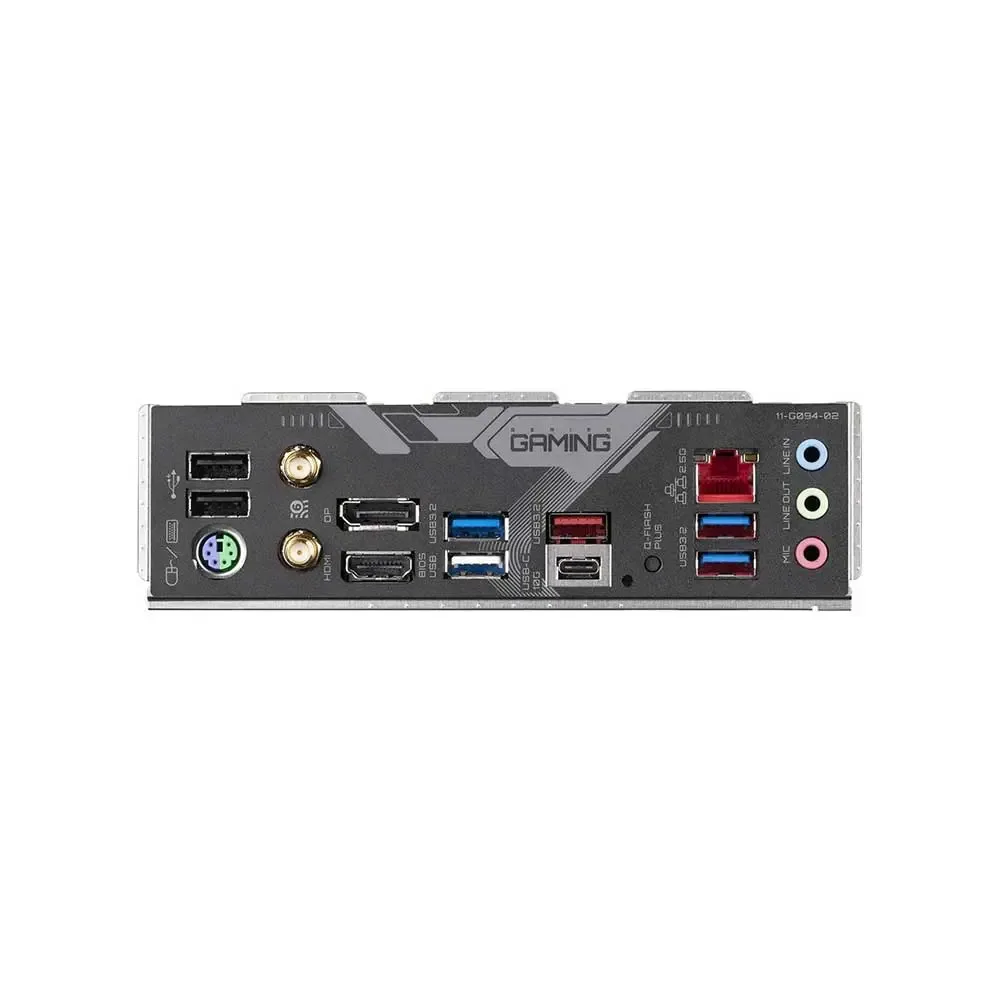

The GIGABYTE B650 GAMING X AX is a full-size ATX gaming motherboard designed for AMD Ryzen processors using the AM5 platform. Built around the AMD B650 chipset, the motherboard supports compatible AMD Ryzen 7000, 8000 and 9000 Series processors, depending on the specific hardware revision and BIOS version. It features four DDR5 DIMM slots with support for up to 256GB of system memory and dual-channel memory architecture. DDR5 speeds up to 8000 MT/s through overclocking are supported, along with AMD EXPO and Intel XMP memory profiles. For graphics and expansion, the B650 GAMING X AX provides a PCIe 4.0 x16 graphics slot. Storage connectivity is extensive, with three M.2 connectors and four SATA 6Gb/s ports, allowing users to install multiple high-speed NVMe SSDs and SATA storage devices. Networking includes a Realtek 2.5GbE LAN controller along with integrated Realtek Wi-Fi 6E supporting 2.4GHz, 5GHz and 6GHz bands. Bluetooth 5.3 is also included for wireless peripherals and accessories. Display connectivity includes DisplayPort 1.4 and HDMI 2.1, while the motherboard also provides Realtek High Definition Audio. Additional GIGABYTE features include Smart Fan 6, Q-Flash Plus, PCIe EZ-Latch and GIGABYTE Control Center. With its ATX form factor, DDR5 support, multiple M.2 slots, Wi-Fi 6E, 2.5GbE networking and gaming-focused design, the B650 GAMING X AX is well suited for modern gaming PCs and high-performance desktop systems.
